Factory-direct from Suzhou · Fixed-mount readers · DPM handhelds

One beep. Code read.

Imaging at up to 60 frames a second and laser aiming on most models, so the read lands the moment you point. Fixed-mount readers speak PROFINET, EtherNet/IP and Modbus TCP natively; handhelds read codes marked straight onto metal. Made in Suzhou, sold direct.

Request a quote Download datasheets

On boardPROFINETEtherNet/IPModbus TCPMC ProtocolTCP/IP

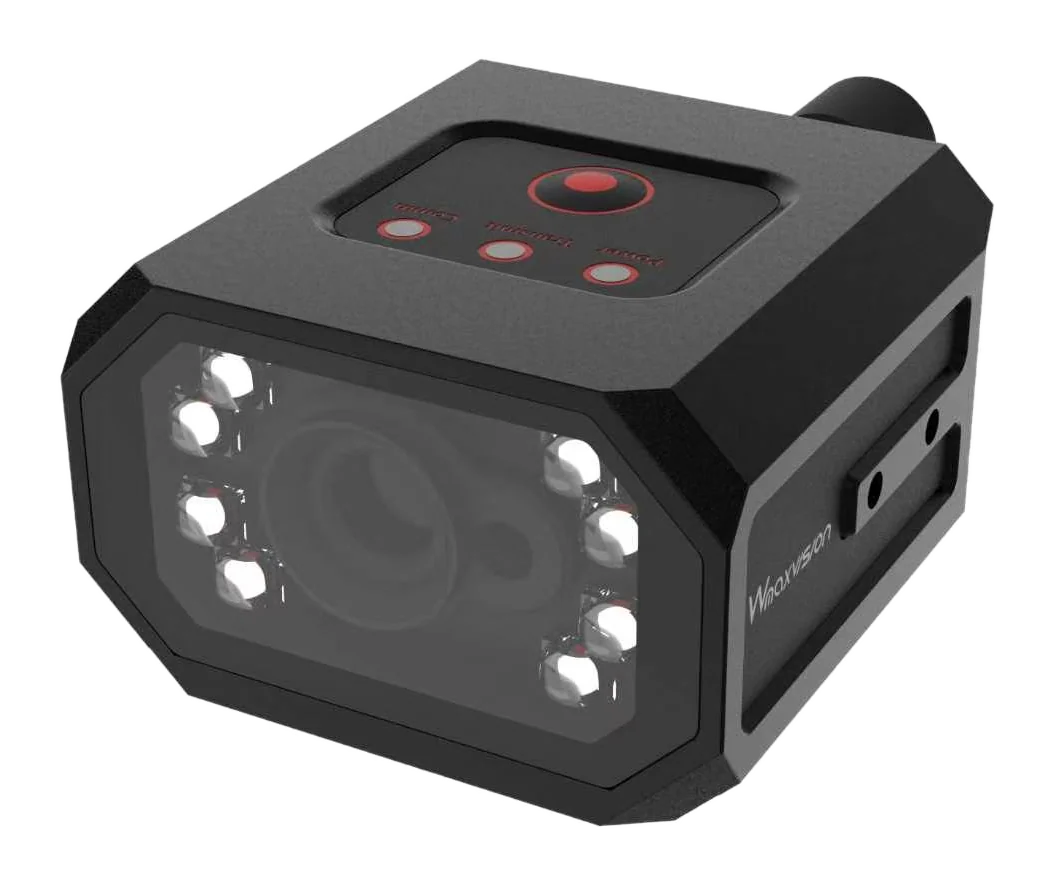

ReadCell VS110R smart code reader with its red LED illumination on

ReadCell VS110R45.4 × 47.0 × 29.87 mm · 133 g

PROFINET · status blockDemo

Bit 0Trigger Ready
Bit 1Trigger Ack
Bit 2Reading
Bit 3Decode Success
Bit 4Decode Completed

Result DataLOT2410A17-000318

Native PLC protocolsPROFINET, EtherNet/IP and Modbus TCP on the smart readers

Files without a loginDatasheets, GSDML, EDS and PLC example projects

On lines at Foxconn, Luxshare, BYDFixed-mount at Foxconn and Luxshare, handheld at BYD

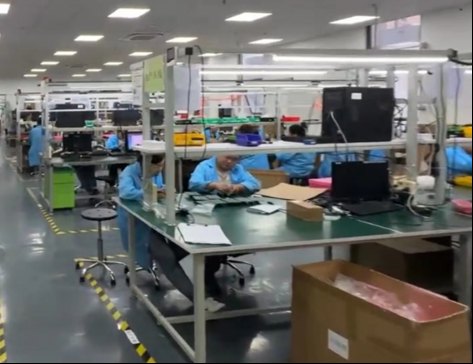

Factory-direct from SuzhouISO 9001 certified production, assembly and testing

The two readers 3C lines order most

All fixed-mount readers

Electronics assembly is where most of our readers go, and these two compact units cover most stations there.

Smart code reader

ReadCell VS110R

AI processor, nine protocols, 133 g aluminum body.

Sensor: 1.3 MP or 2.3 MP global shutter
Protocols: PROFINET · EtherNet/IP · Modbus TCP · MC
I/O: 1 in / 2 out
Body: 45.4 × 47.0 × 29.87 mm · 133 g

VS110R details

Compact code reader

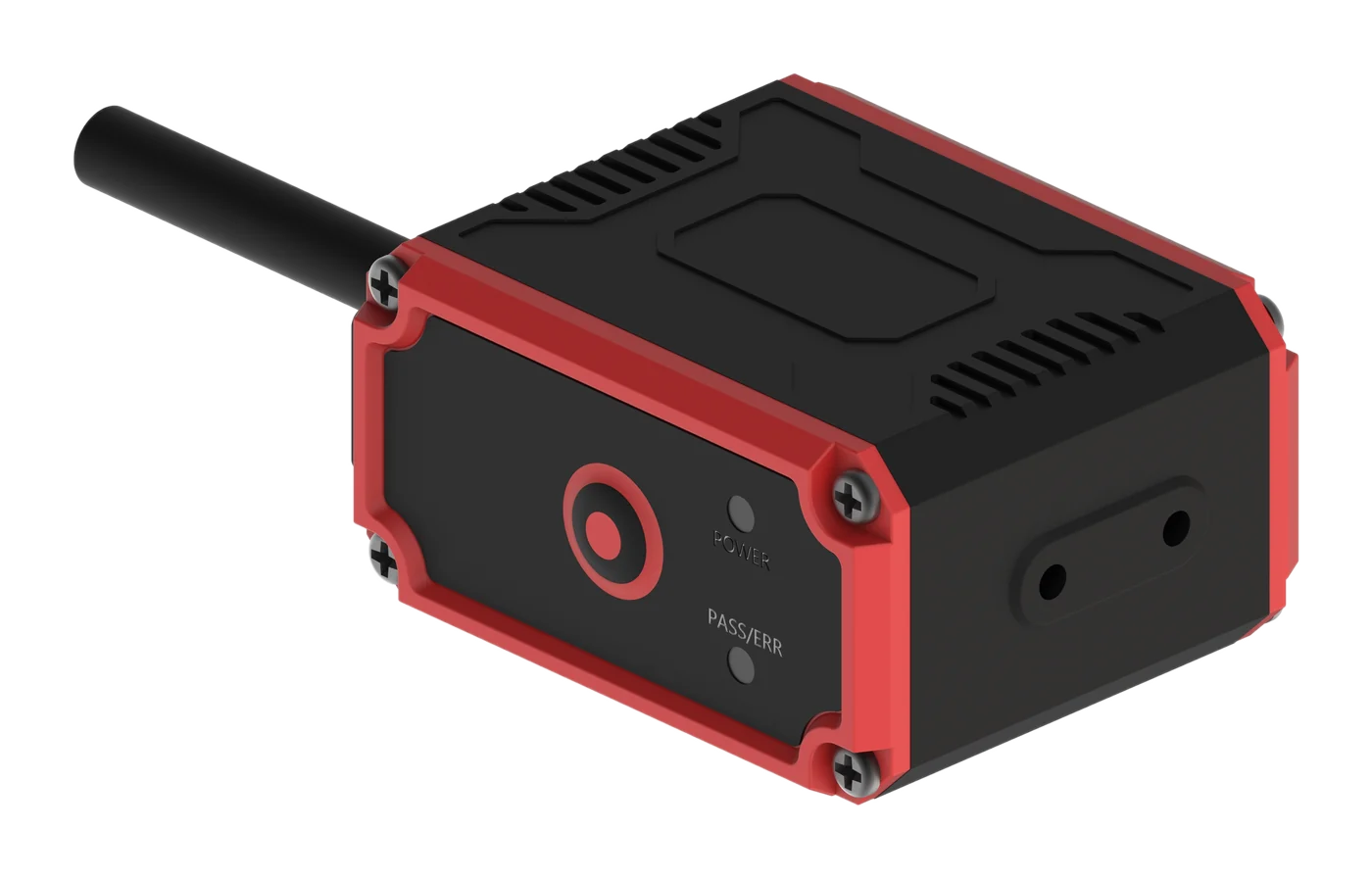

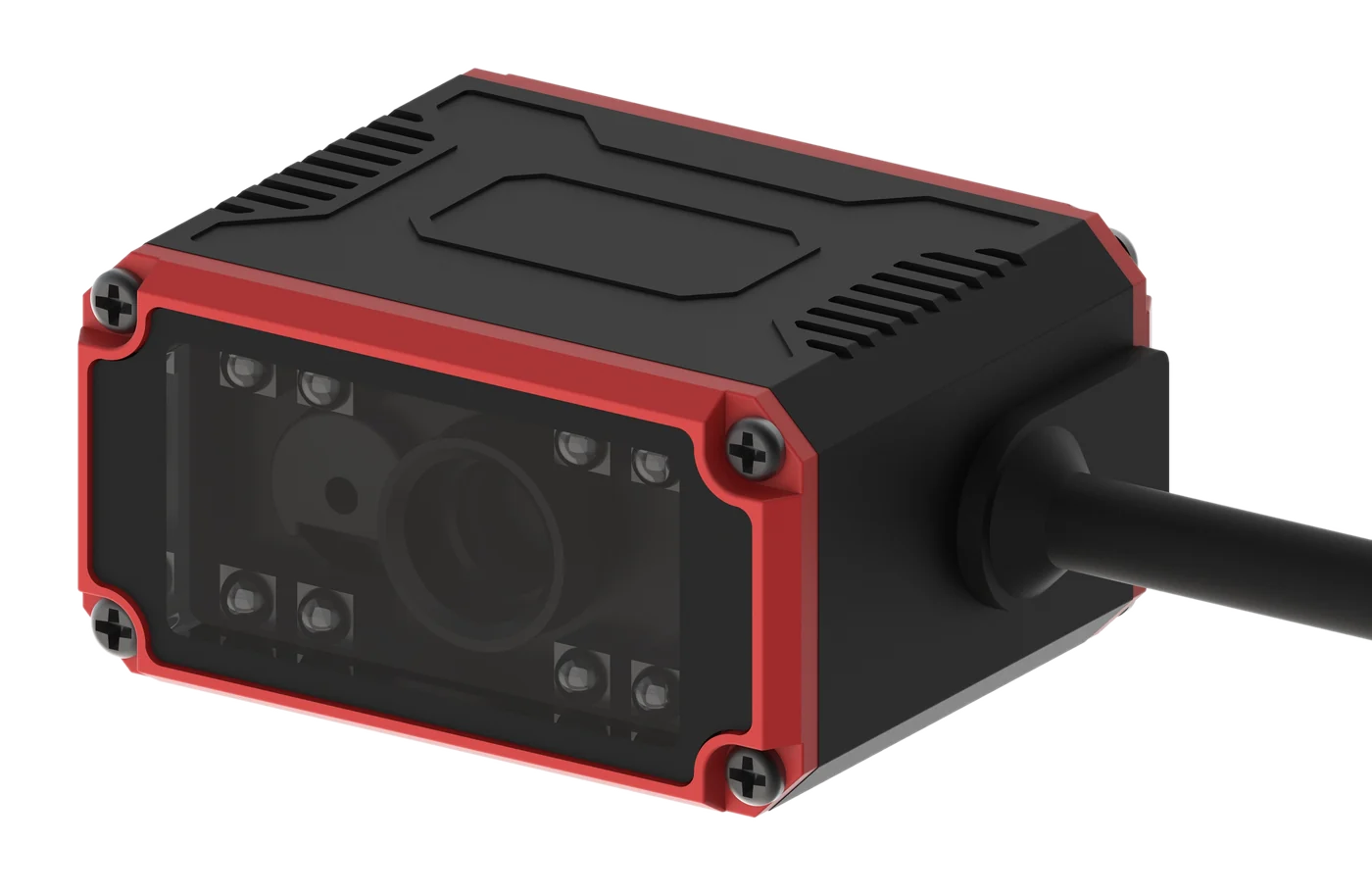

ReadCell VS95

For tight spaces inside machines and on moving axes.

Sensor: 1/4" global shutter, 1280 × 1024, 60 fps
Interfaces: RS232C (DB9) · Ethernet, TCP/IP
Supply: 5–24 VDC
Body: 44.5 × 36.0 × 23.0 mm · 101 g

VS95 details

Fourteen readers, six families

Compare all models

From a 20 g embedded scan module to a cordless DPM handheld.

How a read reaches the PLC

PROFINET walkthrough

The smart readers exchange three data blocks with the PLC. The handshake is the same over PROFINET and EtherNet/IP.

Station 03 · ReadCell VS110RPROFINET online

Demo animation

Control blockTrigger = 1

SymbologyData Matrix

Result dataLOT2410A17-000318

Status blockDecode Success

Illustrative timing, not to scale. Bit names from the reader's PLC interface description.

Enable and triggerThe PLC sets Trigger Enable, waits for Trigger Ready, then sets Trigger. A digital input or continuous mode works too.
Light and captureThe reader answers with Trigger Ack and Reading, fires its illumination and captures the frame.
Decode and reportDecode Completed is always set; Decode Success tells the PLC whether to read the result block.
Acknowledge and repeatThe PLC reads the string, sets Result Ack to clear the flags, and the next part can be triggered.

Connect to the PLC you already run

Integration guides

Device description files and working example projects, published openly. No login wall.

Siemens S7-1200

PROFINET · TIA Portal V17

Install the GSDML file
Add the reader in the network view
Pick the result module by code length
Trigger and read

GSDML · example project

Omron NX1P2

EtherNet/IP · Sysmac Studio

Install the EDS file
Register tag sets, instance 100 / 150
Build the trigger sequence
Read the result string

EDS · example project

Siemens S7-1200

Modbus TCP

Set the reader as Modbus server
Configure MB_CLIENT
Poll the result registers

Any host

TCP/IP socket

Open a socket to the reader
Send the trigger command
Parse the returned string

S7-1200 example project

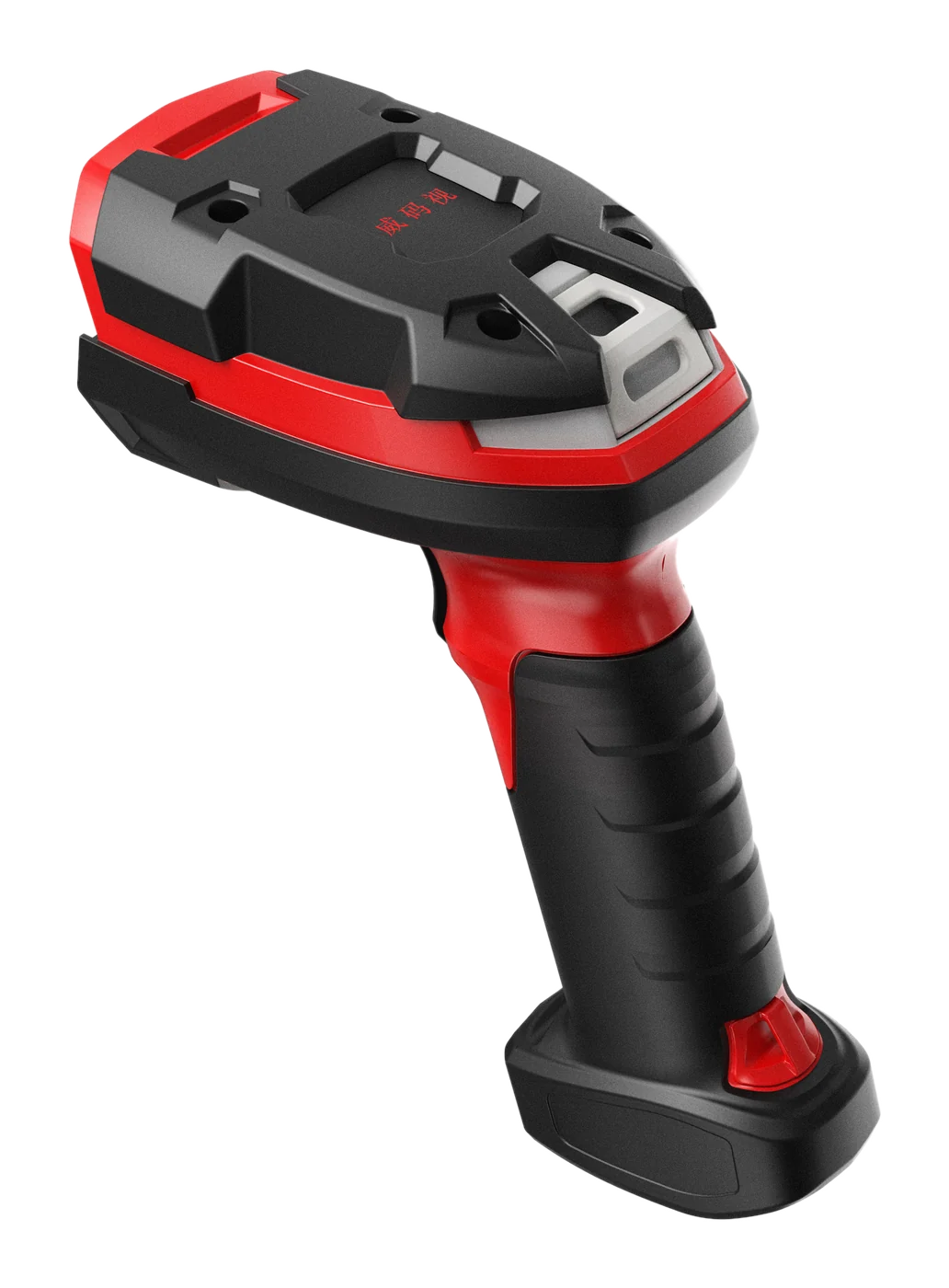

Marks on metal, read by hand

DPM handhelds

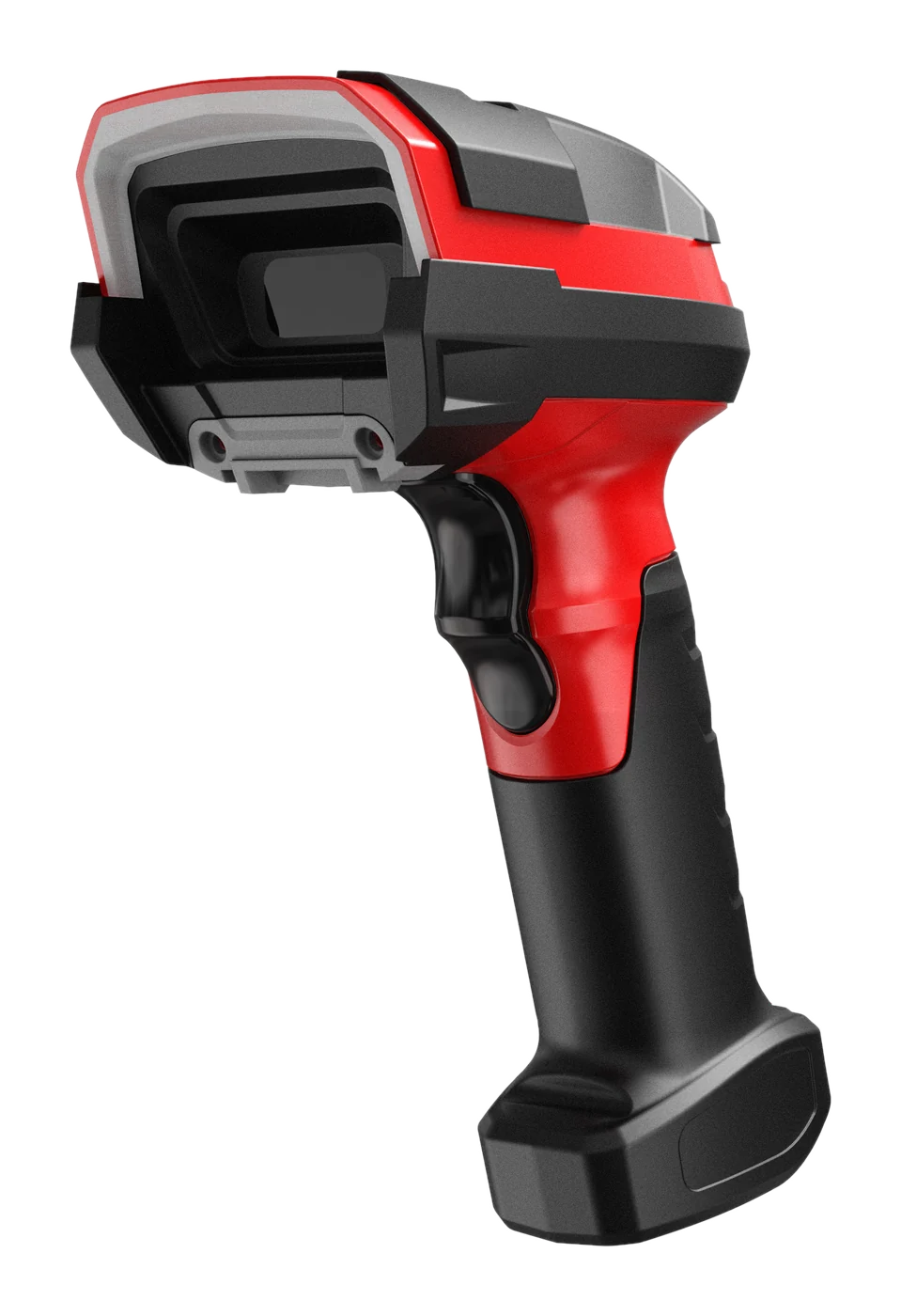

Dot-peened and laser-etched codes on steel, aluminum and cast parts. The ReadCell VS320-DPE combines direct white light with diffuse red and blue light for reflective surfaces.
